Understanding the 4 Cylinder Distributor Cap: Function, Maintenance, and Replacement
The 4 cylinder distributor cap is a vital component in older ignition systems, particularly those found in many classic and some modern vehicles. While newer cars often utilize distributorless ignition systems, understanding the function, maintenance, and potential replacement of a 4 cylinder distributor cap remains essential for enthusiasts, mechanics, and anyone maintaining an older vehicle. This article will delve into the intricacies of the 4 cylinder distributor cap, providing a comprehensive guide to its operation, common issues, and how to address them.
What is a Distributor Cap?
Before diving into the specifics of a 4 cylinder distributor cap, it’s crucial to understand the role of the distributor itself. The distributor’s primary function is to distribute high-voltage electricity from the ignition coil to the correct spark plug at the precise moment needed for combustion. The 4 cylinder distributor cap sits atop the distributor and acts as an intermediary, directing the high-voltage pulses to the appropriate spark plug wires.
Inside the distributor, a rotor spins, making contact with terminals inside the 4 cylinder distributor cap. Each terminal corresponds to a specific spark plug. As the rotor aligns with a terminal, a high-voltage pulse is sent through the terminal, down the spark plug wire, and to the spark plug, igniting the air-fuel mixture in the cylinder.
The Role of the 4 Cylinder Distributor Cap

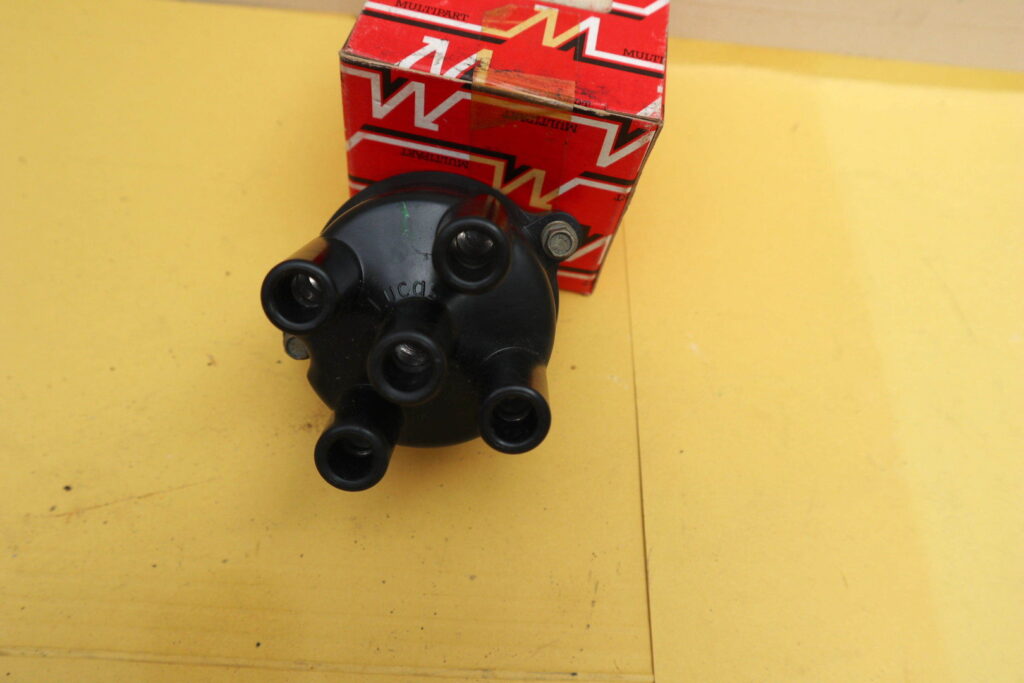

The 4 cylinder distributor cap is specifically designed for engines with four cylinders. It features a central terminal that receives the high-voltage input from the ignition coil, and four outer terminals connected to the spark plugs of each cylinder. The cap is typically made of a durable, non-conductive material, such as Bakelite or a modern polymer, to prevent electrical arcing and ensure efficient voltage delivery. The correct firing order is crucial; the 4 cylinder distributor cap ensures that the spark is delivered to each cylinder at exactly the right time.
Common Problems with 4 Cylinder Distributor Caps
Like any automotive component, the 4 cylinder distributor cap is subject to wear and tear. Over time, several issues can arise that affect its performance:
- Cracking and Damage: The cap can develop cracks due to age, heat, or physical impact. Cracks allow moisture and dirt to enter, leading to misfires and poor engine performance.
- Corrosion: The terminals inside the cap can corrode due to exposure to moisture and contaminants. Corrosion reduces the electrical conductivity, resulting in weak spark and difficulty starting the engine.
- Carbon Tracking: High-voltage arcs can create carbon tracks on the inside of the cap. These tracks provide an alternative path for the electricity, causing misfires and reducing the voltage available to the spark plugs.
- Worn Terminals: The terminals can wear down over time due to the constant arcing of electricity. Worn terminals create a larger gap, requiring more voltage to jump, which can strain the ignition system.
Symptoms of a Faulty Distributor Cap
Several symptoms can indicate a problem with your 4 cylinder distributor cap:
- Misfiring: A misfire occurs when one or more cylinders fail to fire correctly. This can result in a rough-running engine, reduced power, and poor fuel economy.
- Difficulty Starting: A faulty cap can prevent the engine from starting, especially in cold or damp conditions.
- Rough Idle: The engine may idle roughly or stall frequently.
- Reduced Fuel Economy: Inefficient combustion due to a weak spark can lead to a decrease in fuel economy.
- Check Engine Light: A misfire or other ignition-related issues can trigger the check engine light.
Diagnosing a Distributor Cap Problem
If you suspect a problem with your 4 cylinder distributor cap, several diagnostic steps can help pinpoint the issue:
- Visual Inspection: Carefully inspect the cap for cracks, damage, or corrosion. Look for carbon tracking inside the cap.
- Terminal Check: Examine the terminals for wear or corrosion. Use a small brush to clean any corrosion and check for a secure connection.
- Ohmmeter Test: Use an ohmmeter to test the resistance between the central terminal and each of the outer terminals. High resistance or an open circuit indicates a problem.
- Spark Test: Use a spark tester to check the strength of the spark at each spark plug. A weak or non-existent spark can indicate a faulty cap.
Replacing a 4 Cylinder Distributor Cap
Replacing a 4 cylinder distributor cap is a relatively straightforward process that can be performed by most DIY mechanics. Here’s a step-by-step guide:
- Gather Tools and Materials: You will need a new 4 cylinder distributor cap, a screwdriver, a wrench (if needed to remove the distributor), and a set of spark plug wires (recommended).
- Disconnect the Battery: Disconnect the negative battery cable to prevent electrical shock.
- Remove the Old Cap: Locate the distributor cap and remove the retaining clips or screws. Carefully lift the cap off the distributor.
- Inspect the Rotor: While the cap is off, inspect the rotor for wear or damage. Replace the rotor if necessary.
- Install the New Cap: Align the new cap with the distributor and press it firmly into place. Secure the retaining clips or screws.
- Replace Spark Plug Wires (Recommended): If you are replacing the cap, it’s a good idea to replace the spark plug wires as well. Connect the wires to the correct terminals on the cap and to the corresponding spark plugs, ensuring the firing order is correct. This is crucial for the engine to run properly.
- Reconnect the Battery: Reconnect the negative battery cable.
- Start the Engine: Start the engine and check for any misfires or other issues.
Maintenance Tips for Your Distributor Cap
To prolong the life of your 4 cylinder distributor cap and maintain optimal engine performance, follow these maintenance tips:
- Regular Inspections: Periodically inspect the cap for cracks, damage, and corrosion.
- Clean Terminals: Clean the terminals with a small brush to remove any corrosion.
- Replace Spark Plug Wires: Replace the spark plug wires at recommended intervals to prevent excessive wear on the cap.
- Keep the Distributor Dry: Protect the distributor from moisture and contaminants.
Choosing the Right 4 Cylinder Distributor Cap
When replacing your 4 cylinder distributor cap, it’s essential to choose a high-quality replacement that meets or exceeds the original equipment manufacturer (OEM) specifications. Consider the following factors:
- Material: Look for a cap made from durable, heat-resistant materials.
- Terminal Quality: Ensure the terminals are made from high-quality materials and are securely attached to the cap.
- Brand Reputation: Choose a reputable brand known for producing reliable automotive parts.
- Compatibility: Verify that the cap is compatible with your specific vehicle make and model.
Upgrading Your Ignition System
While replacing the 4 cylinder distributor cap, you might consider upgrading other components of your ignition system to improve performance and reliability. Options include:
- High-Performance Ignition Coil: A high-performance coil can provide a stronger spark, resulting in better combustion and increased power.
- Performance Spark Plug Wires: Performance wires offer lower resistance and improved conductivity, delivering more voltage to the spark plugs.
- Electronic Ignition Conversion: Converting to an electronic ignition system eliminates the need for a distributor altogether, providing more precise timing and improved reliability.
The Future of Ignition Systems
While the 4 cylinder distributor cap is a component of older ignition systems, modern vehicles increasingly rely on distributorless ignition systems (DIS). DIS uses electronic sensors and a computer to control the timing and delivery of spark, eliminating the need for a mechanical distributor. However, understanding the principles of the 4 cylinder distributor cap provides valuable insight into the evolution of automotive technology.
In conclusion, the 4 cylinder distributor cap is a crucial component in older ignition systems. Regular maintenance and timely replacement can ensure optimal engine performance and reliability. By understanding the function, common problems, and diagnostic procedures associated with the 4 cylinder distributor cap, you can keep your classic or vintage vehicle running smoothly. Remember to always consult your vehicle’s service manual for specific instructions and recommendations. Keeping your 4 cylinder distributor cap in good condition is essential for maintaining the performance and longevity of your vehicle. If you are unsure about any aspect of distributor cap maintenance or replacement, consult with a qualified mechanic.
