Mastering Your DSLR Camera Rig: A Comprehensive Guide

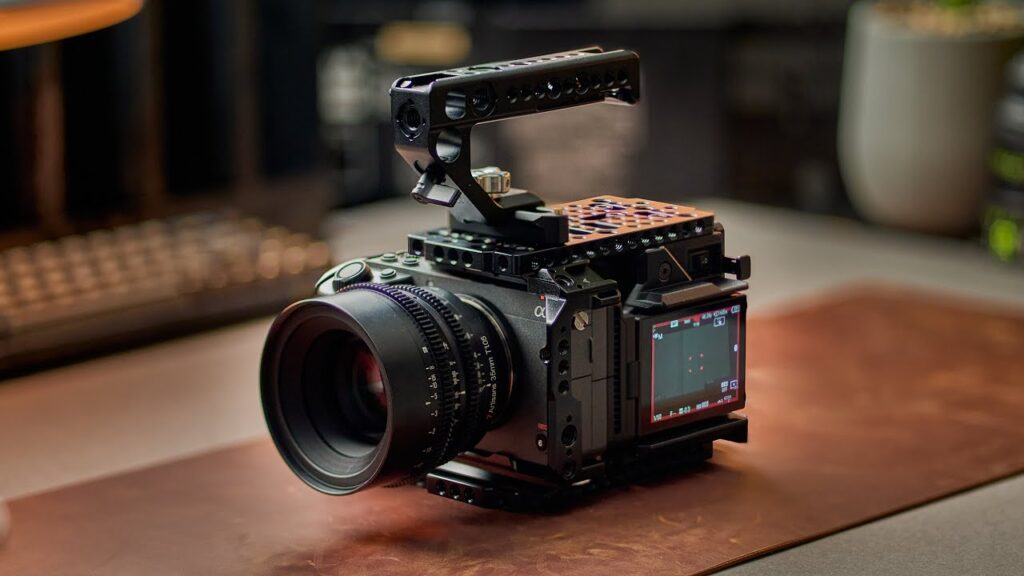

In the dynamic world of filmmaking and photography, a simple DSLR camera often isn’t enough to achieve professional-grade results. This is where a well-configured DSLR camera rig comes into play. A DSLR camera rig transforms your standard camera into a versatile, stable, and feature-rich filmmaking machine. This comprehensive guide will delve into the essentials of building and using a DSLR camera rig, covering everything from the basic components to advanced techniques.

Why Invest in a DSLR Camera Rig?

Before diving into the specifics, let’s address the fundamental question: why bother with a DSLR camera rig? While a DSLR camera is capable of capturing impressive images and videos on its own, its ergonomics and functionality are often limited. A DSLR camera rig addresses these limitations by providing several key benefits:

• Stability: Handheld shooting can result in shaky footage. A DSLR camera rig provides a stable platform, reducing camera shake and allowing for smoother, more professional-looking shots.
• Ergonomics: Holding a DSLR camera for extended periods can be uncomfortable. A DSLR camera rig distributes the weight more evenly, making it easier to hold and operate for longer durations.
• Accessory Mounting: DSLRs often have limited mounting points for accessories like microphones, monitors, and lights. A DSLR camera rig provides numerous mounting points, allowing you to customize your setup to meet your specific needs.
• Improved Audio: By allowing you to mount an external microphone, a DSLR camera rig can significantly improve the audio quality of your videos.
• Enhanced Visuals: Mounting an external monitor allows for better framing and focus, leading to more visually appealing footage.

Essential Components of a DSLR Camera Rig

A DSLR camera rig can be as simple or as complex as you need it to be. However, there are a few essential components that form the foundation of most rigs:

Baseplate

The baseplate is the foundation of your DSLR camera rig. It attaches to the bottom of your camera and provides a stable platform for mounting other components. Look for a baseplate that is compatible with your camera and features standard 1/4″-20 and 3/8″-16 mounting threads.

Rods

Rods are metal bars that attach to the baseplate and serve as the backbone of your rig. They provide a framework for mounting accessories such as follow focuses, matte boxes, and shoulder pads. 15mm rods are the most common size.

Follow Focus

A follow focus allows you to precisely adjust the focus of your lens while recording. This is particularly useful for maintaining sharp focus when your subject is moving. A good follow focus should be smooth, accurate, and easy to operate. [See also: Choosing the Right Follow Focus System]

Matte Box

A matte box is a device that attaches to the front of your lens and helps to control light. It can be used to block unwanted light from entering the lens, reducing flare and improving contrast. Matte boxes also allow you to use filters to further enhance your images.

Shoulder Pad

A shoulder pad provides support and stability when shooting handheld. It distributes the weight of the rig across your shoulder, making it more comfortable to hold for extended periods. Look for a shoulder pad that is adjustable and provides good cushioning.

Top Handle

A top handle provides a convenient way to carry and maneuver your DSLR camera rig. It also provides additional mounting points for accessories such as monitors and microphones.

Monitor

An external monitor allows you to see a larger and more detailed image than the camera’s built-in screen. This is particularly useful for checking focus and framing. Look for a monitor with features such as peaking, zebras, and false color.

Microphone

An external microphone is essential for capturing high-quality audio. DSLRs typically have poor built-in microphones, so investing in an external microphone is a must for serious filmmakers. [See also: Best Microphones for DSLR Filmmaking]

Building Your DSLR Camera Rig: A Step-by-Step Guide

Now that you know the essential components, let’s walk through the process of building your own DSLR camera rig:

1. Choose Your Components: Start by selecting the components that you need for your specific shooting style and budget. Consider the type of projects you’ll be working on and the accessories that will be most beneficial.
2. Attach the Baseplate: Securely attach the baseplate to the bottom of your camera using the appropriate screws. Make sure the baseplate is properly aligned and tightened.
3. Mount the Rods: Insert the rods into the baseplate and tighten the set screws. The rods should be parallel to each other and securely mounted.
4. Attach Accessories: Attach your accessories, such as the follow focus, matte box, shoulder pad, top handle, monitor, and microphone, to the rods using the appropriate mounting hardware.
5. Adjust and Fine-Tune: Once all of the components are mounted, adjust them to your liking. Make sure everything is securely tightened and that the rig is balanced and comfortable to hold.

Tips for Using Your DSLR Camera Rig Effectively

Building a DSLR camera rig is only half the battle. To get the most out of your rig, consider these tips:

• Practice: Spend time practicing with your rig to become familiar with its handling and operation. Experiment with different configurations and accessories to find what works best for you.
• Balance: A well-balanced rig is easier to hold and operate. Distribute the weight evenly across your shoulder and body to reduce fatigue.
• Cable Management: Keep your cables organized and out of the way to prevent them from getting tangled or damaged. Use cable ties or clamps to secure the cables to the rig.
• Maintenance: Regularly inspect your rig for loose screws or damaged components. Clean the rig regularly to keep it in good condition.
• Experiment with different lenses: The right lens can drastically change the look and feel of your footage. Consider investing in a variety of lenses to expand your creative options.

Advanced Techniques for DSLR Camera Rigs

Once you’ve mastered the basics of using a DSLR camera rig, you can start exploring more advanced techniques:

Using a Gimbal

A gimbal is a motorized stabilizer that allows you to capture smooth, cinematic footage while moving. Combining a gimbal with your DSLR camera rig can take your filmmaking to the next level. [See also: Integrating a Gimbal into Your DSLR Rig Workflow]

Using a Wireless Follow Focus

A wireless follow focus allows you to control the focus of your lens remotely. This is particularly useful for complex shots where you need to adjust the focus while operating the camera. It adds another layer of professional control to your DSLR camera rig.

Using a Wireless Video Transmitter

A wireless video transmitter allows you to send your video signal to a remote monitor. This is useful for allowing others to see what you’re shooting or for monitoring the footage from a distance.

Choosing the Right DSLR Camera Rig for Your Needs

With so many different DSLR camera rig options available, it can be difficult to choose the right one for your needs. Here are a few factors to consider:

• Budget: DSLR camera rigs can range in price from a few hundred dollars to several thousand dollars. Determine your budget before you start shopping.
• Shooting Style: Consider the type of projects you’ll be working on and the accessories that will be most beneficial.
• Camera Compatibility: Make sure the rig is compatible with your camera.
• Build Quality: Look for a rig that is well-built and durable.
• Features: Consider the features that are important to you, such as the number of mounting points, the adjustability of the shoulder pad, and the smoothness of the follow focus.

Conclusion

A DSLR camera rig is an essential tool for any serious filmmaker or photographer. By providing stability, ergonomics, and accessory mounting points, a rig can transform your DSLR camera into a versatile and powerful filmmaking machine. By understanding the essential components, building your own rig, and mastering advanced techniques, you can take your filmmaking to the next level. Remember to always prioritize safety and practice proper cable management to ensure a smooth and efficient workflow. Investing in a quality DSLR camera rig is an investment in the quality and professionalism of your work.
