Decoding Video Connectors: A Comprehensive Guide to Types and Applications
In today’s visually driven world, understanding video connectors is crucial for anyone working with displays, cameras, or any device that transmits visual data. From the ubiquitous HDMI to the legacy VGA, different video connectors serve distinct purposes and offer varying levels of performance. This guide aims to provide a comprehensive overview of common video connectors, their features, and their optimal applications.
The Importance of Understanding Video Connectors
Choosing the right video connector can significantly impact the quality and stability of your video signal. A mismatched or outdated connector can result in blurry images, flickering, or even a complete loss of signal. Understanding the capabilities of each type allows you to make informed decisions, ensuring optimal performance for your specific needs. Whether you’re setting up a home theater, connecting a computer to a monitor, or configuring a professional video production system, the right video connector is essential.

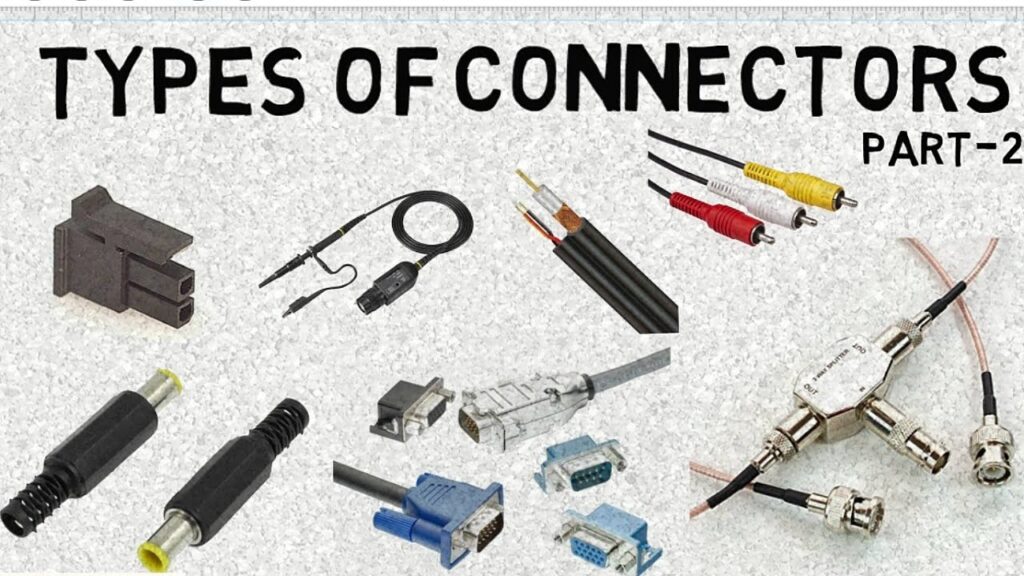

Common Types of Video Connectors
HDMI (High-Definition Multimedia Interface)
HDMI is arguably the most prevalent video connector in modern devices. It’s a digital interface that transmits both video and audio signals through a single cable. HDMI is commonly found on TVs, monitors, gaming consoles, Blu-ray players, and computers. Its ability to carry high-definition and ultra-high-definition video, along with multi-channel audio, makes it a versatile choice for various applications.
Different versions of HDMI exist, each offering improved bandwidth and features. For example, HDMI 2.0 supports 4K resolution at 60Hz, while HDMI 2.1 supports 8K resolution at 60Hz and 4K resolution at 120Hz, along with other advanced features like variable refresh rate (VRR). When selecting an HDMI cable, it’s important to consider the version supported by your devices to ensure compatibility and optimal performance.
DisplayPort
DisplayPort is another digital video connector designed primarily for computer displays. It offers similar capabilities to HDMI, including support for high-resolution video and audio. DisplayPort is often preferred in professional settings due to its higher bandwidth and support for multiple monitors through daisy-chaining. This allows users to connect several displays to a single DisplayPort output on their computer.
Like HDMI, DisplayPort also has different versions, with DisplayPort 1.4 being a common standard that supports 8K resolution at 60Hz. DisplayPort also features adaptive sync technologies like AMD FreeSync and NVIDIA G-Sync, which reduce screen tearing and stuttering during gaming.
DVI (Digital Visual Interface)
DVI is an older digital video connector that was widely used before HDMI and DisplayPort became prevalent. It primarily carries video signals and doesn’t support audio transmission. DVI comes in several variations, including DVI-D (digital only), DVI-A (analog only), and DVI-I (integrated, supporting both digital and analog signals). While DVI is still found on some older devices, it’s gradually being phased out in favor of HDMI and DisplayPort.
DVI is limited in its resolution capabilities compared to newer standards. Single-link DVI can support resolutions up to 1920×1200 at 60Hz, while dual-link DVI can support higher resolutions like 2560×1600 at 60Hz. However, the lack of audio support and the increasing availability of higher-performance alternatives have made DVI less attractive for modern applications.
VGA (Video Graphics Array)
VGA is an analog video connector that has been around for decades. It’s the oldest of the connectors discussed here and is characterized by its trapezoidal shape with 15 pins. VGA transmits analog video signals, which means that the signal can degrade over longer cable lengths. While VGA was once the standard for connecting computers to monitors, it’s now largely obsolete due to its limitations in resolution and image quality.
VGA is typically limited to resolutions of 1080p or lower, and the analog nature of the signal can result in blurry or noisy images, especially at higher resolutions. Although VGA is still found on some older devices, it’s generally recommended to use a digital video connector like HDMI or DisplayPort whenever possible for better image quality.
Component Video
Component video uses three separate cables to transmit video signals: one for luminance (Y) and two for color difference (Pb and Pr). This analog video connector was commonly used for DVD players and other video devices before the advent of HDMI. Component video can support high-definition resolutions, but it’s still an analog signal, which means it’s susceptible to signal degradation.
Composite Video
Composite video is another analog video connector that transmits all video signals through a single cable. It’s typically identified by its yellow RCA connector. Composite video offers the lowest image quality of all the connectors discussed here and is generally limited to standard-definition resolutions. It’s rarely used in modern devices due to its poor performance.
Choosing the Right Video Connector: Key Considerations
When selecting a video connector, several factors should be taken into account:
- Resolution: Determine the maximum resolution supported by your devices and choose a connector that can handle it. HDMI and DisplayPort are generally the best choices for high-resolution displays.
- Refresh Rate: If you’re using a high-refresh-rate monitor, make sure the video connector and cable support the desired refresh rate. HDMI 2.1 and DisplayPort 1.4 are capable of handling high refresh rates at high resolutions.
- Audio Support: If you need to transmit audio along with video, choose a connector that supports audio transmission, such as HDMI or DisplayPort.
- Cable Length: For longer cable runs, consider using a high-quality cable or a signal booster to prevent signal degradation.
- Device Compatibility: Ensure that the video connector you choose is compatible with all of your devices. If necessary, use adapters to connect devices with different connector types.
Adapters and Converters
In some cases, you may need to use adapters or converters to connect devices with different video connectors. For example, you can use an HDMI-to-DVI adapter to connect a computer with an HDMI output to a monitor with a DVI input. However, it’s important to note that adapters may not always support all features of the original connectors. For example, an HDMI-to-VGA adapter may not support high resolutions or audio transmission.
Future Trends in Video Connectors
The world of video connectors is constantly evolving. New standards and technologies are continually being developed to improve performance and add new features. For example, USB-C is increasingly being used as a video connector, offering support for DisplayPort Alternate Mode, which allows it to transmit video signals over the USB-C port. This simplifies connectivity and reduces the number of cables needed.
As display technology continues to advance, we can expect to see further developments in video connectors. Higher bandwidth, improved features, and greater versatility will be key drivers in the evolution of these essential components. [See also: Understanding HDMI Versions] [See also: DisplayPort vs HDMI: Which is Better?]
Conclusion
Understanding video connectors is essential for anyone working with displays and video equipment. By understanding the different types of connectors, their capabilities, and their limitations, you can make informed decisions and ensure optimal performance for your specific needs. Whether you’re setting up a home theater, connecting a computer to a monitor, or configuring a professional video production system, choosing the right video connector is crucial for achieving the best possible results. The ubiquitous HDMI connector is found on most modern devices, but DisplayPort is another key digital option. Even older connectors like VGA and DVI still have their places, though their utility is diminishing. The future will likely see USB-C becoming an even more important player in the video connector landscape. With the right knowledge, you can navigate the world of video connectors with confidence and achieve the best possible video quality.
