BNC Cable: Understanding Its Uses, Types, and Importance
The BNC cable, short for Bayonet Neill-Concelman cable, is a ubiquitous connector type primarily used in radio, television, and other radio-frequency electronic equipment, test instruments, and video signals. Its quick connect/disconnect mechanism, facilitated by a bayonet-style locking system, makes it a reliable and efficient choice for numerous applications. This article will delve into the intricacies of the BNC cable, exploring its various types, uses, advantages, and essential considerations when selecting the right one.
What is a BNC Cable?

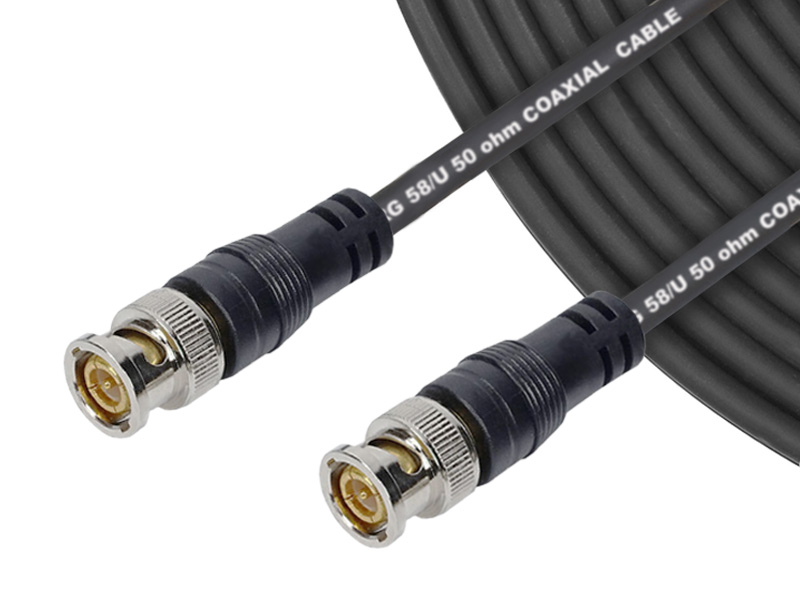

A BNC cable is a type of coaxial cable that uses a BNC connector on both ends. This connector features a center pin that carries the signal, surrounded by a circular metal shield. The bayonet locking mechanism ensures a secure and low-loss connection, making it ideal for transmitting signals with minimal interference. The reliable connection provided by a BNC cable is crucial in many sensitive applications.
History and Development
The BNC cable connector was invented in the late 1940s by Paul Neill of Bell Labs and Carl Concelman of Amphenol. It was designed as a miniature version of the earlier Type N connector, offering similar performance but in a more compact form factor. The bayonet locking mechanism provided a faster and more convenient alternative to threaded connectors, leading to its widespread adoption across various industries. Over the years, the BNC cable has been refined and adapted to meet the evolving demands of modern technology.
Key Features and Benefits
- Quick Connect/Disconnect: The bayonet locking mechanism allows for fast and easy connections and disconnections.
- Secure Connection: Provides a stable and reliable connection, minimizing signal loss and interference.
- Versatility: Suitable for a wide range of applications, including video, radio frequency, and data transmission.
- Durability: Designed to withstand frequent use and harsh environmental conditions.
- Standardization: Widely recognized and supported across various industries and equipment.
Types of BNC Cables
BNC cables come in various types, each designed for specific applications and frequency ranges. Understanding these differences is crucial for selecting the right cable for your needs.
Standard BNC Cables
These are the most common types of BNC cables, used for general-purpose applications such as video signals, test equipment, and low-frequency data transmission. They typically support frequencies up to 4 GHz and are available in various impedance ratings, such as 50 ohm and 75 ohm. [See also: Coaxial Cable Impedance]
High-Frequency BNC Cables
Designed for applications requiring higher bandwidth and lower signal loss, high-frequency BNC cables can support frequencies up to 12 GHz or higher. These cables often feature improved shielding and materials to minimize interference and maintain signal integrity. They are commonly used in advanced test equipment, satellite communication systems, and high-speed data networks.
Miniature BNC Cables
Miniature BNC cables offer a smaller form factor, making them suitable for applications where space is limited. Despite their smaller size, they still provide reliable performance and secure connections. They are often used in portable devices, medical equipment, and other compact electronic systems.
HD-SDI BNC Cables
Specifically designed for high-definition serial digital interface (HD-SDI) video signals, these BNC cables offer superior performance and impedance matching to ensure optimal video quality. They are commonly used in broadcast studios, video production facilities, and other professional video applications.
Applications of BNC Cables
BNC cables are used in a wide array of applications due to their reliability and versatility.
Video Surveillance Systems
In video surveillance systems, BNC cables are frequently used to transmit video signals from cameras to recording devices or monitors. Their secure connection and low signal loss ensure clear and reliable video transmission, which is crucial for effective surveillance. Often paired with CCTV systems, the BNC cable ensures seamless video feeds.
Test and Measurement Equipment
BNC cables are essential in test and measurement equipment, such as oscilloscopes, signal generators, and spectrum analyzers. They provide a reliable and low-noise connection for accurate signal transmission and analysis. The quick connect/disconnect feature is particularly useful in these applications, allowing for rapid setup and reconfiguration. [See also: Understanding Oscilloscope Probes]
Broadcast and Television
In the broadcast and television industry, BNC cables are used to transmit video and audio signals between various devices, such as cameras, switchers, and monitors. Their high-quality signal transmission and durability make them a preferred choice for professional broadcast environments. The BNC cable is a staple in any broadcast studio.
Medical Equipment
BNC cables are also used in medical equipment, such as diagnostic imaging systems and patient monitoring devices. Their reliable connection and low interference are critical for accurate data transmission and patient safety. The miniature BNC cable variant is particularly useful in compact medical devices.
Networking
While less common in modern Ethernet networks, BNC cables were previously used in early Ethernet implementations, particularly in 10BASE2 networks (Thinnet). They provided a simple and cost-effective solution for connecting devices in a linear bus topology. However, they have largely been replaced by twisted-pair cabling and RJ45 connectors in most modern networks.
Choosing the Right BNC Cable
Selecting the appropriate BNC cable is crucial for ensuring optimal performance and reliability. Consider the following factors when making your selection:
Impedance
BNC cables are available in different impedance ratings, typically 50 ohm and 75 ohm. It is essential to match the impedance of the cable to the impedance of the connected devices to minimize signal reflections and ensure optimal signal transmission. 50 ohm BNC cables are commonly used for data and radio frequency applications, while 75 ohm BNC cables are typically used for video signals. [See also: Impedance Matching Techniques]
Frequency Range
Ensure that the BNC cable is rated for the frequency range required by your application. High-frequency applications require cables with higher bandwidth and lower signal loss. Refer to the cable’s specifications to ensure it meets your frequency requirements.
Cable Length
The length of the BNC cable can affect signal quality, especially at higher frequencies. Shorter cables generally provide better signal transmission and lower signal loss. When using longer cables, consider using cables with lower attenuation characteristics to minimize signal degradation.
Shielding
Adequate shielding is essential for minimizing interference and ensuring signal integrity. Look for BNC cables with double or triple shielding to provide maximum protection against electromagnetic interference (EMI) and radio frequency interference (RFI). This is particularly important in environments with high levels of electrical noise.
Connector Quality
The quality of the BNC cable connector is crucial for ensuring a secure and reliable connection. Look for connectors made from high-quality materials, such as gold-plated brass, to provide excellent conductivity and corrosion resistance. Ensure that the connectors are properly crimped or soldered to the cable to prevent signal loss and ensure long-term reliability.
Environmental Conditions
Consider the environmental conditions in which the BNC cable will be used. If the cable will be exposed to harsh conditions, such as extreme temperatures, moisture, or chemicals, choose a cable with appropriate environmental ratings and materials. Look for cables with UV-resistant jackets and waterproof connectors for outdoor applications.
Troubleshooting Common Issues
Even with high-quality BNC cables, issues can sometimes arise. Here are some common problems and how to troubleshoot them:
Signal Loss
Signal loss can occur due to several factors, including poor connections, damaged cables, or incorrect impedance matching. Check the connections to ensure they are secure and properly tightened. Inspect the cable for any signs of damage, such as cuts or kinks. Verify that the impedance of the cable matches the impedance of the connected devices. [See also: Coaxial Cable Troubleshooting]
Interference
Interference can be caused by electromagnetic interference (EMI) or radio frequency interference (RFI). Ensure that the BNC cable is properly shielded to minimize interference. Keep the cable away from sources of electrical noise, such as power cables and transformers. Consider using shielded connectors and grounding techniques to further reduce interference.
Connection Problems
Connection problems can occur due to corroded or damaged connectors. Clean the connectors with a suitable contact cleaner to remove any dirt or corrosion. Inspect the connectors for any signs of damage, such as bent pins or broken housings. Replace the connectors if necessary.
The Future of BNC Cables
While newer technologies like HDMI and DisplayPort are gaining prominence, the BNC cable continues to be a relevant and reliable solution for many applications. Its simplicity, durability, and secure connection make it a preferred choice in industries where reliability is paramount. Innovations in cable materials and connector designs are ensuring that BNC cables will remain a valuable tool for years to come.
Conclusion
The BNC cable is a versatile and reliable connector type that has been used for decades in various applications. Understanding its types, uses, and considerations when selecting the right cable is crucial for ensuring optimal performance and reliability. Whether you are setting up a video surveillance system, working with test equipment, or transmitting video signals in a broadcast studio, the BNC cable remains a valuable and dependable solution.
