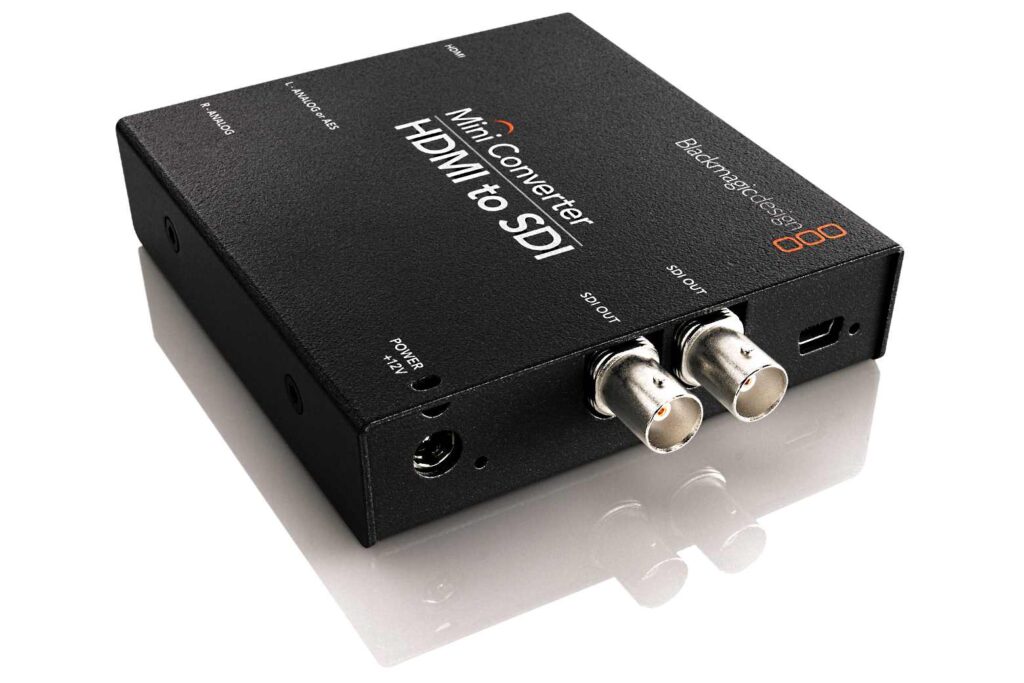

Blackmagic HDMI to HD-SDI Converter: Unveiling the Power and Versatility

In the fast-paced world of video production, seamless signal conversion is paramount. The Blackmagic HDMI to HD-SDI converter stands as a vital tool for professionals seeking to bridge the gap between consumer-grade HDMI devices and broadcast-quality SDI equipment. This article delves into the features, benefits, and applications of this essential converter, offering a comprehensive guide for those navigating the complexities of video workflows.

Understanding the Need for HDMI to HD-SDI Conversion

HDMI (High-Definition Multimedia Interface) and SDI (Serial Digital Interface) are two prevalent video signal standards, each with its own strengths and weaknesses. HDMI is commonly found in consumer electronics like cameras, laptops, and gaming consoles, prized for its ability to transmit high-definition video and audio over a single cable. SDI, on the other hand, is the industry standard for broadcast and professional video equipment, offering superior reliability, longer cable runs, and the ability to embed audio and timecode signals.

The Blackmagic HDMI to HD-SDI converter acts as a bridge between these two worlds, allowing users to integrate HDMI sources into SDI-based workflows. This is particularly useful in live production environments, studios, and outside broadcast (OB) vans, where SDI infrastructure is the norm. Without such a converter, connecting an HDMI camera to an SDI switcher or monitor would be impossible.

Key Features of the Blackmagic HDMI to HD-SDI Converter

The Blackmagic HDMI to HD-SDI converter is packed with features designed to meet the demands of professional video production:

• High-Quality Conversion: It provides pristine conversion from HDMI to HD-SDI, ensuring that the video signal remains clean and accurate throughout the process.
• SD and HD Support: The converter supports both standard definition (SD) and high definition (HD) video formats, offering flexibility for various production needs.
• Embedded Audio: It can embed audio from the HDMI source into the SDI output, eliminating the need for separate audio connections.
• Compact and Rugged Design: The converter is housed in a durable metal enclosure, making it suitable for use in demanding environments. Its small size allows for easy integration into existing setups.
• Automatic Input Detection: The device automatically detects the input video format, simplifying the setup process.
• Low Jitter SDI Output: Ensures a clean and stable SDI signal, minimizing the risk of errors or dropouts.
• Firmware Upgradable: The firmware can be updated via USB, allowing for future feature enhancements and compatibility updates.

Applications of the Blackmagic HDMI to HD-SDI Converter

The versatility of the Blackmagic HDMI to HD-SDI converter makes it an indispensable tool in a wide range of applications:

Live Production

In live production environments, the converter allows users to incorporate HDMI cameras, laptops, and other sources into SDI-based switchers and monitors. This is crucial for events such as concerts, conferences, and sporting events, where multiple camera angles and graphics need to be seamlessly integrated.

Broadcast Studios

Broadcast studios rely on SDI infrastructure for its reliability and robustness. The Blackmagic HDMI to HD-SDI converter enables the integration of HDMI-based equipment, such as graphics generators and character generators, into the studio’s workflow.

Outside Broadcast (OB) Vans

OB vans are mobile production units that are used to broadcast live events from remote locations. The converter allows these vans to utilize HDMI sources, such as drones and action cameras, alongside their SDI-based equipment.

Post-Production

While post-production workflows typically utilize SDI, the converter can be useful for ingesting HDMI footage from various sources into editing systems. It can also be used to output SDI signals for monitoring purposes.

Digital Signage

The converter can be used to connect HDMI-based media players to SDI-based displays in digital signage applications. This is particularly useful in environments where long cable runs are required.

Advantages of Using the Blackmagic HDMI to HD-SDI Converter

Choosing the Blackmagic HDMI to HD-SDI converter offers several distinct advantages:

• Improved Workflow: Seamlessly integrate HDMI sources into SDI environments, streamlining your video production workflow.
• Enhanced Reliability: SDI offers greater reliability and stability compared to HDMI, particularly over long cable runs.
• Professional Quality: Maintain the highest video quality throughout the conversion process, ensuring a pristine final product.
• Cost-Effectiveness: The converter provides a cost-effective solution for bridging the gap between HDMI and SDI equipment.
• Flexibility: Adapt to a variety of production scenarios with support for both SD and HD video formats.

Technical Specifications

Understanding the technical specifications of the Blackmagic HDMI to HD-SDI converter is crucial for ensuring compatibility with your existing equipment:

• Input: 1 x HDMI Type A
• Output: 2 x HD-SDI
• Supported Resolutions: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Audio Support: Embedded HDMI audio
• Power Supply: 12V universal power supply included with international socket adapters for all countries.
• Dimensions: 92.2 mm x 58.6 mm x 23 mm
• Weight: 193g

Setting Up Your Blackmagic HDMI to HD-SDI Converter

Setting up the Blackmagic HDMI to HD-SDI converter is a straightforward process:

1. Connect the HDMI source to the HDMI input on the converter.
2. Connect the SDI output(s) to the SDI input(s) on your destination device (e.g., switcher, monitor).
3. Connect the power supply to the converter and plug it into a power outlet.
4. Ensure that the input video format is supported by the converter and the destination device.
5. Power on the HDMI source and the destination device.
6. Verify that the video signal is being successfully converted and displayed on the destination device.

Troubleshooting Common Issues

While the Blackmagic HDMI to HD-SDI converter is generally reliable, some common issues may arise:

• No Video Output: Check the power supply, HDMI cable, and SDI cable connections. Ensure that the input video format is supported by the converter and the destination device.
• Audio Issues: Verify that the HDMI source is outputting audio and that the audio is being properly embedded into the SDI signal.
• Image Quality Problems: Ensure that the HDMI and SDI cables are of good quality and that they are not damaged. Check the video settings on the HDMI source and the destination device.
• Compatibility Issues: Some older HDMI devices may not be fully compatible with the converter. Try updating the firmware of the converter or using a different HDMI source.

Alternatives to the Blackmagic HDMI to HD-SDI Converter

While the Blackmagic HDMI to HD-SDI converter is a popular choice, several alternatives are available on the market:

• Decimator Design MD-HX: A versatile cross converter that supports HDMI, SDI, and analog video formats.
• AJA Mini-Converter HDMI to SDI: A compact and reliable converter from a reputable manufacturer.
• ROSS Video openGear Converter: A modular converter that can be integrated into a larger openGear frame.

Consider your specific needs and budget when choosing an HDMI to HD-SDI converter. [See also: SDI to HDMI Converters: A Comprehensive Guide]

Conclusion

The Blackmagic HDMI to HD-SDI converter is a powerful and versatile tool that enables seamless integration between HDMI and SDI equipment. Its high-quality conversion, compact design, and wide range of features make it an essential asset for video professionals in live production, broadcast, post-production, and digital signage applications. By understanding its capabilities and limitations, you can leverage this converter to enhance your workflow and achieve professional-grade results. The Blackmagic HDMI to HD-SDI converter remains a cost-effective and reliable solution for bridging the gap between consumer and professional video equipment. The robust build and consistent performance of the Blackmagic HDMI to HD-SDI converter make it a staple in many production environments. Consider the Blackmagic HDMI to HD-SDI converter for your next project requiring signal conversion. Make sure the Blackmagic HDMI to HD-SDI converter meets your specific resolution and frame rate needs. For complex setups, the Blackmagic HDMI to HD-SDI converter‘s reliability is a major advantage. The Blackmagic HDMI to HD-SDI converter is known for its ease of use, making it a favorite among technicians. The widespread use of the Blackmagic HDMI to HD-SDI converter speaks to its effectiveness and value. When choosing a converter, the Blackmagic HDMI to HD-SDI converter is often a top contender. Many professionals trust the Blackmagic HDMI to HD-SDI converter for critical signal paths. The Blackmagic HDMI to HD-SDI converter is a solid investment for any video production toolkit. The Blackmagic HDMI to HD-SDI converter helps ensure signal integrity in demanding environments. [See also: Understanding SDI Signal Standards] [See also: Choosing the Right Video Converter for Your Needs]
